ARRI ALEXA 35 XTREME

ALEXA 35 Xtreme is the smallest fully featured ARRI production camera ever, packing the features and processing power of a larger ALEXA into a Mini-sized body that can record higher frame rates than ever; now up to 660fps. Fast and easy operation is assured through numerous usability improvements and a simple menu structure that will be intuitively familiar to crews. ALEXA 35 Xtreme is the best A-camera, B-camera, and action camera on the market, all rolled into one.

ALEXA 35 XTREME

+ What's Included?

- Alexa 35 Xtreme
- MVF-2 EVF
- VMB-5 Viewfinder Bracket
- CBP-5 19mm Compact Bridge Plate w/ shoulder pad
- CCH-5 Handle
- LMS-4
- TEB-1
- RMB-7
- Power Distribution Module 1
- AEM-1
- AC Power Supply
- LPL > PL Adapter
- Dovetail
- CSB-1 Side Brackets
- Codex Compact Drive Dock

+ Additional Recommended items

- Codex Compact Mag 2TB

+ What lens mount options are available?

The Alexa 35 Xtreme uses the same mount style as the Alexa Mini LF. Our kit includes an LPL mount with a PL adapter. We can also offer a Canon EF mount.

+ What's New About This Camera?

- Improved High Speed Framerates
- New ARRICORE Codec
- New S35 Sensor with Reveal Color Science
- Expanded Dynamic Range (17 Stops)
- LogC4
- Arri Textures + Look Library built in
- Audio + Power Rear Expansion Units
- EI up to 6400
- Operator Side Display
- HDR Viewfinder

+ How Much Does the Camera Weigh?

∼2.9 kg / 6.4 lbs (camera body with three antennas and LPL Mount (LBUS))

+ Can you shoot anamorphic?

Yes, the Alexa 35 has a desqueeze option in all modes. Options are:
- 1x
- 1.25x
- 1.30x
- 1.33x
- 1.50x
- 1.65x
- 1.80x
- 2.00x

+ Can I use Full Frame Lenses?

Yes! Along with reinvigorating S35 glass, this camera allows for sampling the sharpest point of lenses designed to cover full frame.

ALEXA 35 XTREME vs. ALEXA 35

There are a few differences between the previous standard Alexa 35 model and the upgraded Xtreme, let’s go over a few things below!

QUICK SPEC CHANGE OVERVIEW


      Feature
      ALEXA 35 (Standard)
      ALEXA 35 Xtreme (Standard Mode)
      Sensor Overdrive Mode



      Max FPS (4.6K Open Gate)
      75 fps
      120 fps
      165 fps


      Max FPS (3.8K 16:9)
      120 fps
      150 fps
      240 fps


      Max FPS (3.8K 2.39:1)
      Not available
      240 fps
      240 fps


      Max FPS (2K S16)
      120 fps
      330 fps
      660 fps


      Dynamic Range
      17 stops
      17 stops
      11 stops


      Codec Options
      ARRIRAW, ProRes
      ARRIRAW, ProRes, + ARRICORE
      ARRIRAW, ProRes, + ARRICORE


      Pre-record (4.6K OG @ 24 fps PR 422HQ)
      8.5 sec
      48 sec
      48 sec


      Pre-record (2k S16 @ 24 fps PR 422HQ)
      20 sec
      5 min
      5 min


WHAT HASN’T CHANGED

Body & Accessories

Same housing, I/O ports, connectors, and layout as the standard ALEXA 35, just a new “Xtreme” decal. Everything fits right in, no need to swap rigs.

Resolution & Baseline Frame Rates

The existing popular recording formats, resolutions, and frame rates remain available.

Menu Interface

The UI, navigation structure, and on-screen controls are unchanged, just some new options for the additional frame rates and ARRICORE.

**WHAT HAS CHANGED**

ARRICORE Codec

A new, leaner RGB codec that slots between ARRIRAW and ProRes in file size. It’s optimized for high frame rates and cuts data rates by 50% compared to ARRIRAW without compromising image quality.
Offers post flexibility: EI sensitivity, white balance, and tint remain adjustable in post.
It’s a lower data burden, with the same workflow DITs have been using. Same wrappers, textures, and metadata handling you already know.

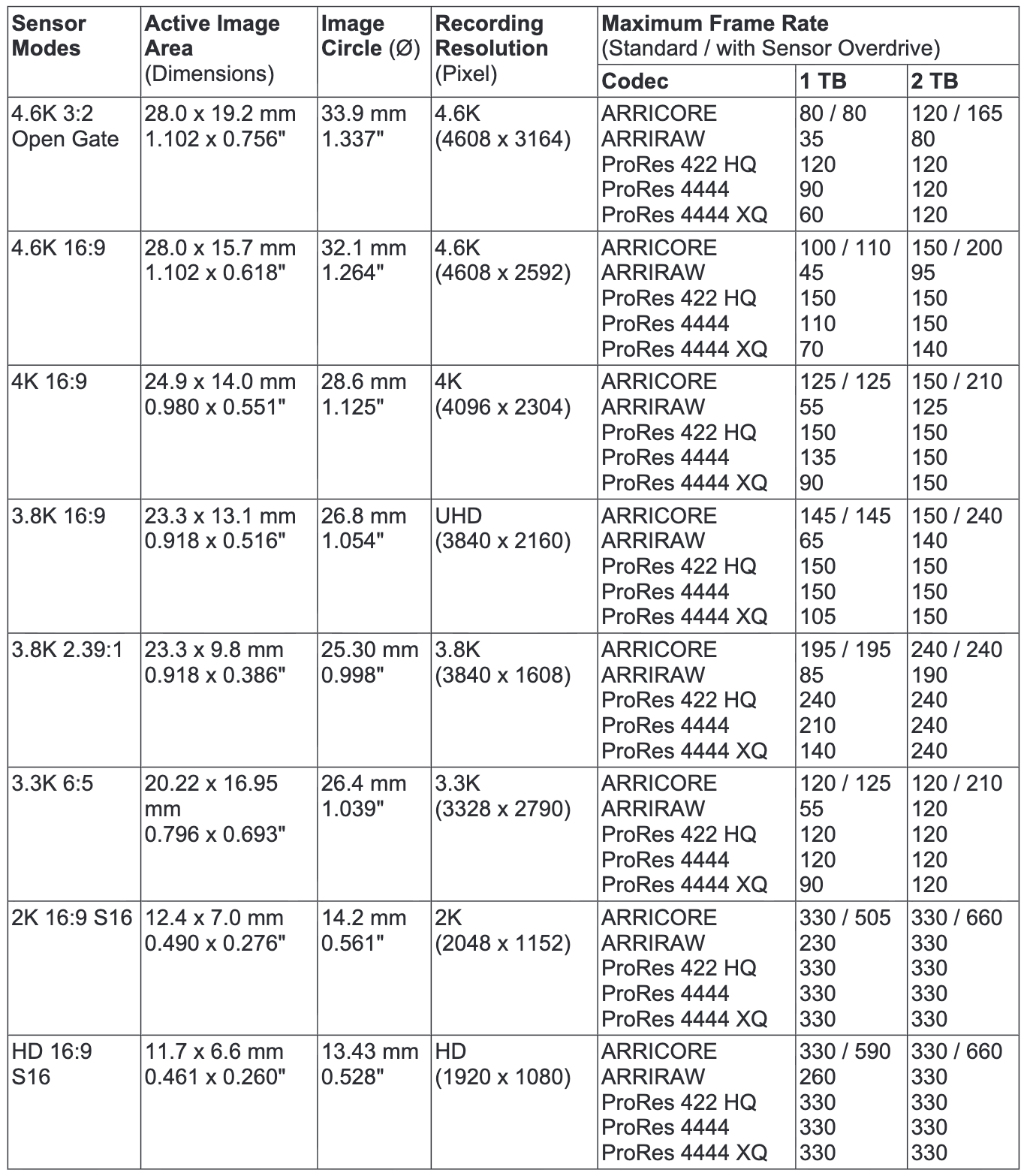

High Frame Rates & Sensor Overdrive Mode

Higher speed ceiling: Max frame rates are up across the board up to 330 fps while maintaining full 17-stop dynamic range.
Sensor Overdrive: doubles the ceiling to 660 fps, at the expense of dynamic range (~11 stops) and raising base ISO to EI 1600.
Example increases in real modes:
- 4.6K Open Gate: from 75 fps → 120 fps standard, 165 fps in Overdrive
- 3.8K 16:9: from 120 fps → 150 fps standard, 240 fps Overdrive
- 3.8K 2.39:1: newly available; captures up to 240 fps at full DR
- 2K 16:9 S16: up to 330 fps standard, 660 fps Overdrive
All high-speed recording require the 2TB Codex Compact Drive media instead of the 1TB.

Other Upgrades

10% reduced power consumption. Longer battery life, less heat output.
Pre-record buffer is 5× longer: up to 30 seconds in 4.6K Open Gate (ProRes 4444), or 5 minutes in HD (ProRes 422 HQ) at 24 fps.
Improved Wi-Fi: now supports the 5GHz band, mesh roaming, and auto-reconnect for tools like Camera Companion. To take advantage of this longer upgraded antenna are included.
